LitePlus

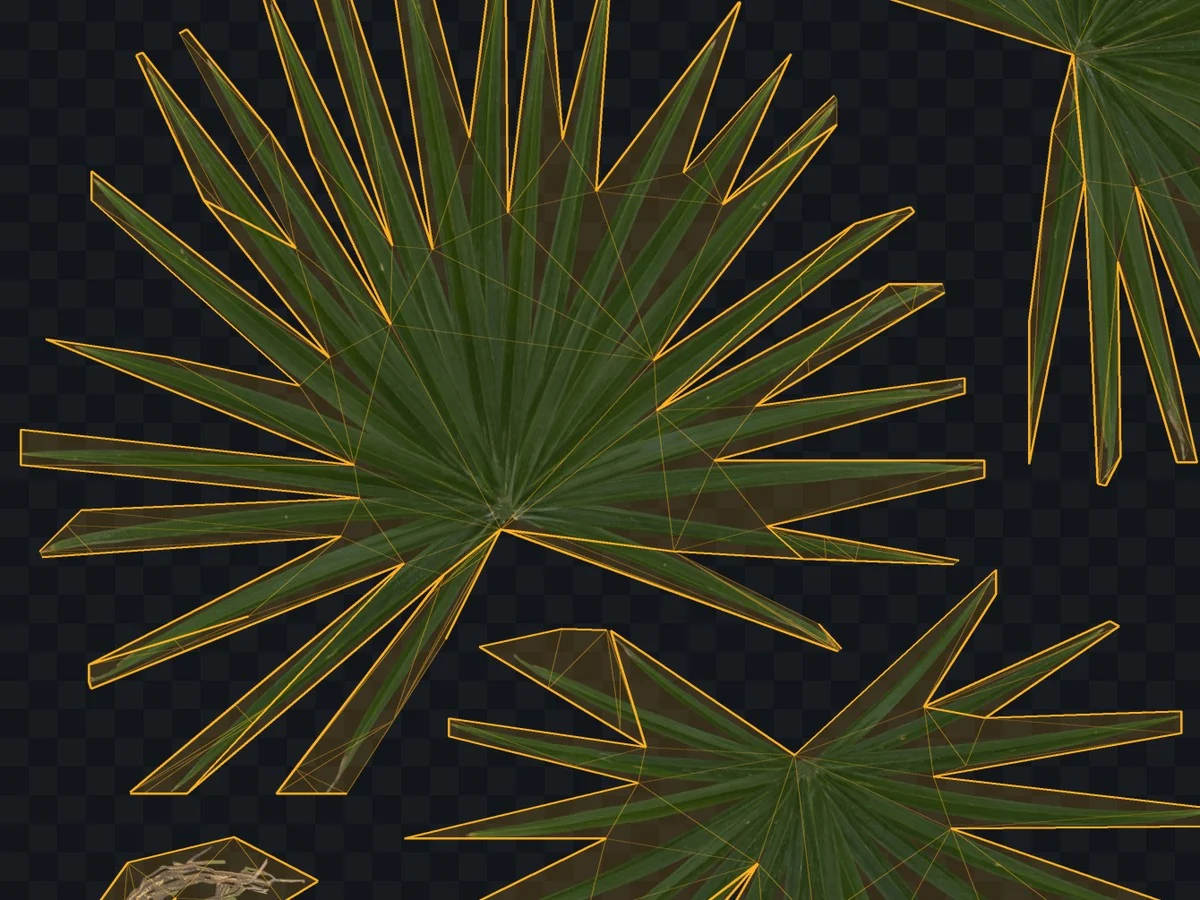

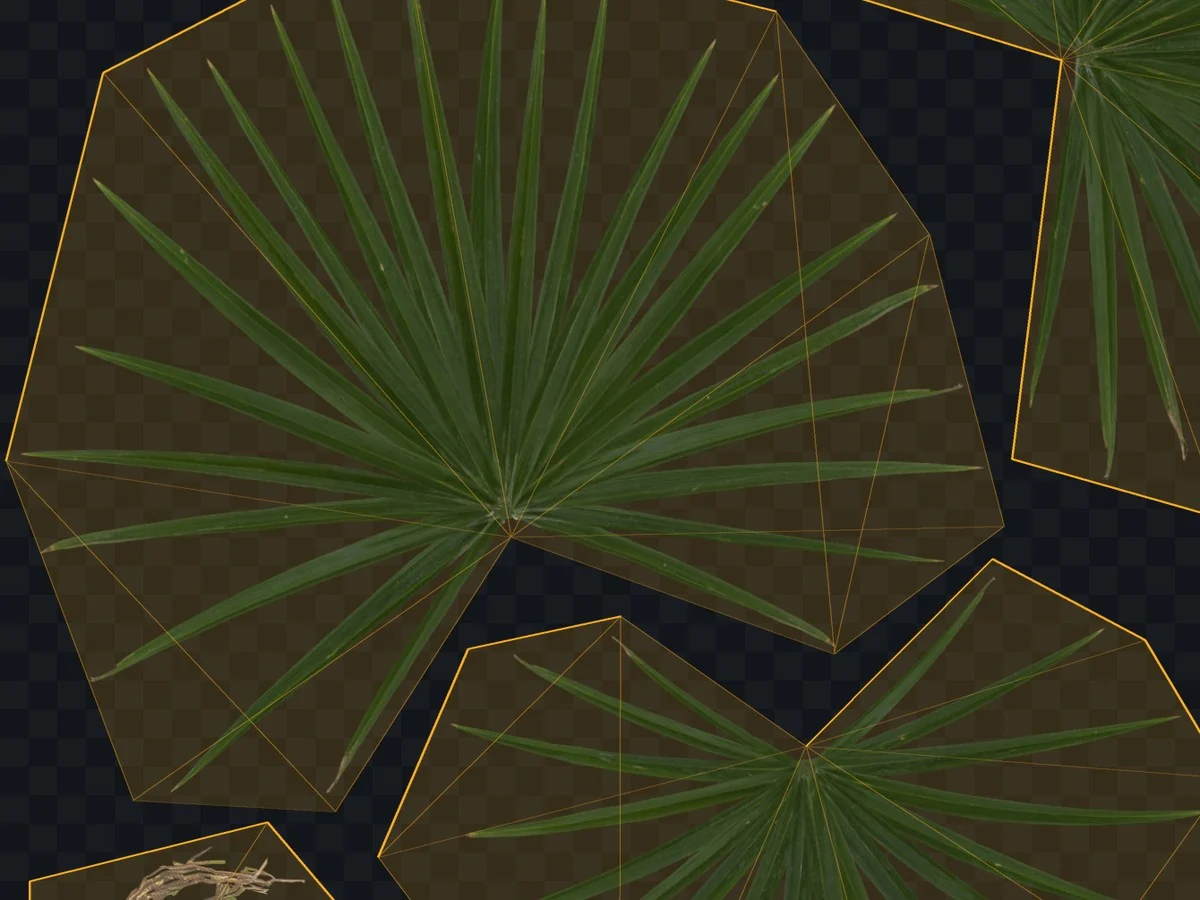

Cut the cards to reduce overdraw
Each leaf card is cut to the shape of its leaves, as an opaque mesh. Nanite draws much less, and no leaf pixel is lost.
Sample palm: 100% → 59.6% of the card area drawn.
Foliage Toolkit Get it Unreal Engine 5.1 — 5.8
Nanite changed how trees work. Bring yours along.
Foliage Toolkit brings the trees you already have to Nanite: the ones your artists made and the packs you bought.
What it does
One click. Three jobs.
On disk
8.33 MB
LitePlus
Build assemblies to lower disk size
Repeated leaf cards are stored once, as parts of a Nanite assembly, and drawn thousands of times.
One pine: 8.33 MB → 3.17 MB on disk.
LitePlus
Rebuild the tree automatically to add wind
One click turns your static mesh tree into a Nanite skeletal tree that moves with Epic’s Dynamic Wind.
LitePlus

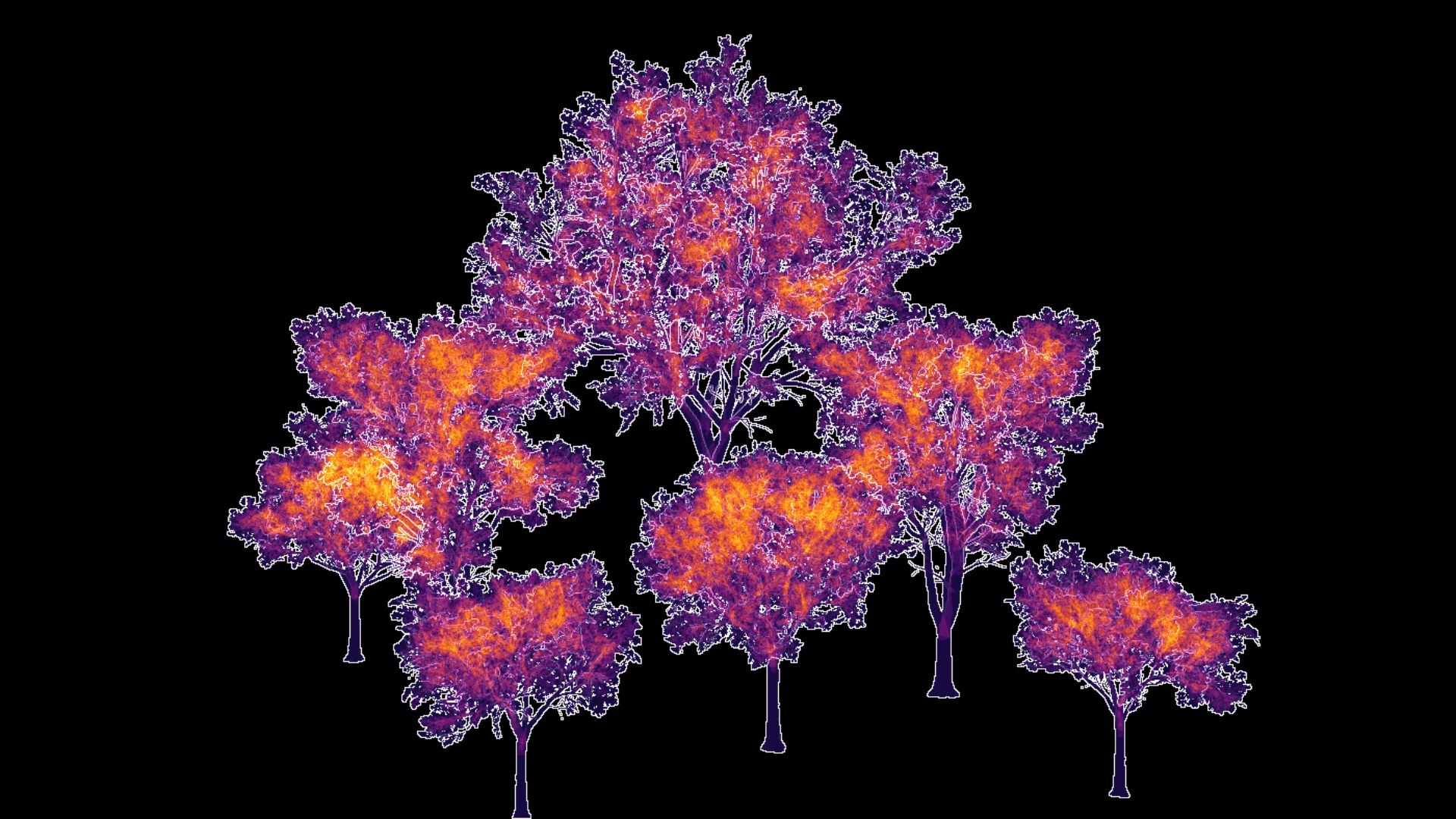

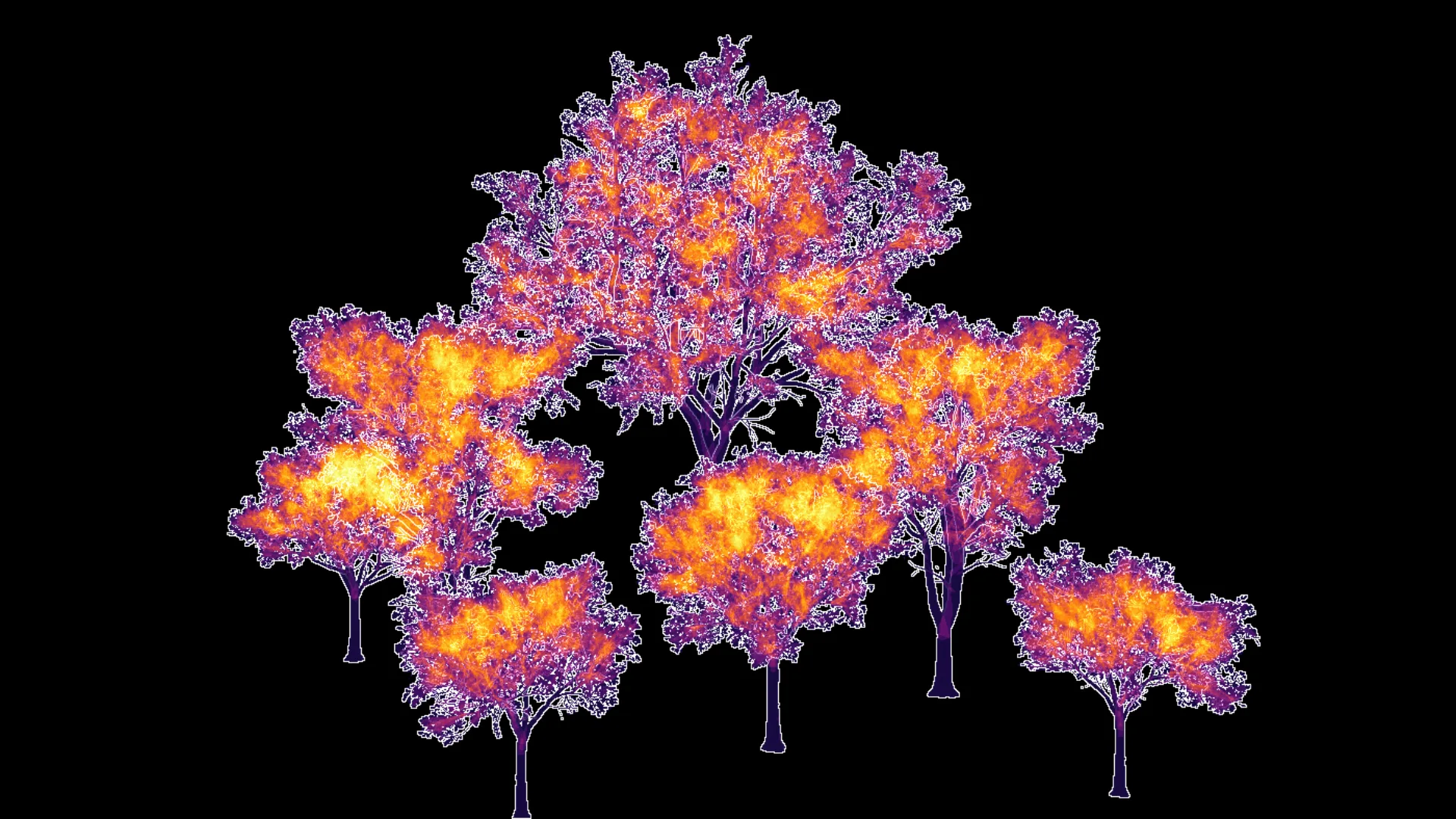

See the overdraw drop
Unreal’s Nanite Overdraw view of seven oaks, before and after the cut. The hot colours show where many layers of cards are drawn on the same pixel.
Hottest pixels 164k → 83k, mean overdraw -25%
Choose your version
Lite. Plus. Studio.
Foliage Toolkit Lite
Free
UE 5.1 — 5.8
- Cut the cards
- Python and Blueprint API for the cut
- No assemblies
- No wind
Foliage Toolkit Plus
On Fab
UE 5.7 — 5.8
- Everything in Lite
- Build assemblies
- Rebuild the tree to add wind
- Full Python and Blueprint API
Foliage Toolkit Studio
Contact us
UE 5.7 — 5.8
- Everything in Plus
- AI agent toolkit
- Conversion report for the whole library
For studios
Let your artists make art.
An AI agent does the boring part: it converts your tree library while your team works on the game. It analyses each tree, converts it, looks at the result and fixes what it can. Most trees need no human work. The few that do are flagged, with a report that says why.
- — Your artists spend their time on creative work, not on conversions
- — Your budget goes to the work that makes your game stand out
- — Works with Claude Code, Codex and other coding agents
- — A conversion report for the whole library
Talk to us
Got a large library to convert?
Stay up to date.
Learn when an update or a new product drops. No spamming, we promise.
Join the community on DiscordQuestions.
Lite: Unreal Engine 5.1 to 5.8. Plus and Studio: 5.7 and 5.8. Windows (Win64).
No. The result is a new asset next to the source. The source mesh is never changed, and nothing is saved until you save.
A little empty area stays inside each outline, and an opaque material draws it too. Check the result in the viewport, and lower Simplify for a tighter fit.
For Plus and Studio, yes. They enable Epic’s Dynamic Wind and Procedural Vegetation Editor plugins, which Epic marks Experimental in 5.7 and 5.8.
No. Plus contains everything in Lite. Remove Lite before you enable Plus.
Anthony Carmona · Sentient Art
Hi, I'm Anthony. I make art for games, and the tools that make it faster. Foliage Toolkit follows Pipe It.
